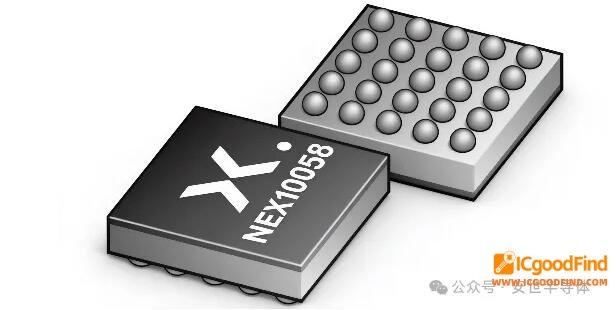

Nexperia has expanded its display power portfolio with the new NEX10058, a triple-channel AMOLED bias power IC engineered for next-generation high-spec displays. The chip targets the growing demand for higher brightness and longer battery life in premium smartphones.

The NEX10058 addresses the power challenges of modern AMOLED screens by delivering up to 1A of output current, supporting 1600nits peak brightness. This surpasses the industry-standard 600–800mA, ensuring stable performance under heavy load.

Its ultra-low on-resistance cuts conduction losses by nearly half compared to competitors, significantly boosting efficiency, especially in dark display modes. The chip integrates seamlessly with the latest DDIC standards via a dual 1.2V single-wire logic interface and supports a wide 2.5V–5.0V input voltage range, making it compatible with next-gen battery tech like silicon anodes.

Key Features:

• ELVDD, ELVSS, AVDD independent outputs

• Total output current up to 1A; AVDD up to 150mA

• 1.45MHz switching frequency

• Integrated protection: UVLO, SCP, OTP

• Ultra-compact WLCSP25 package

The NEX10058 is BOM-compatible with leading competitors but offers superior performance, positioning it as an ideal choice for next-gen AMOLED phones.

ICgoodFind : Nexperia's NEX10058 delivers. High brightness, lower power, and seamless integration for tomorrow's AMOLED flagships.
